CS Unitec Portable Magnetic Drill with Swivel Base CS Unitec’s MAB 485 SB magnetic drill features a swivel base that provides 20˚ ..
Free Shipping
Ships Today
Easy
Returns
Lowest Price
Guarantee

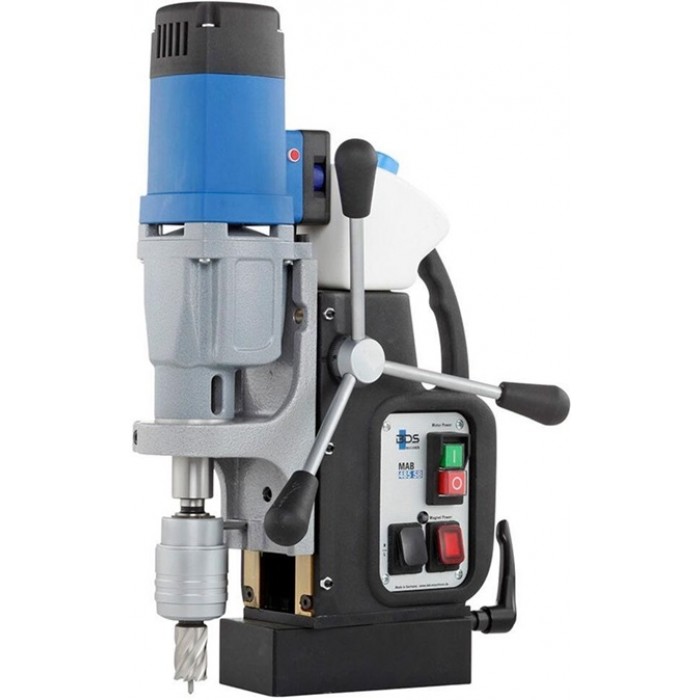

CS Unitec’s MAB 485 SB magnetic drill features a swivel base that provides 20˚ movement left and right and 5/8” forward and backward for drilling in hard-to-reach areas. The MAB 485 SB magnetic drill has a hole cutting capacity up to 2-1/16” dia. in structural steel and other metals. The 10.5 amp, double-insulated, reversible motor has a variable speed through a 2-gear oil bath gearbox (70-280 and 180-580 RPM) ideal for annular cutters and twist drills. Additional capabilities include twist drilling up to 7/8” dia., tapping up to 15/16” dia., reaming up to 7/8” dia. and countersinking up to 1-5/8”. This unit has a quick-change keyless cutter system for 3/4” Weldon Shanks, saving time and money. With a 3/4” drill chuck or MT2, the MAB 485 SB easily converts to a standard drill press. Integrated sensors in the MAB 485 SB include magnet overheating protection, visual magnet adhesion indication and an Electronic Safety Shutoff Sensor to automatically shut down the drill motor if the magnet loses contact with the material. An internal cable routing system helps protect the motor power cord from external damage. The magnet has a holding force of 8,000 lbs.
