Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head

$8,690.16
  • Brands Powermatic
  • Product Code: 1791283
  • Availability: In Stock

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head This 16" jointer offers big capacity and performance in a machine that is ..

Free Shipping

Ships Today

Easy

Returns

Lowest Price

Guarantee

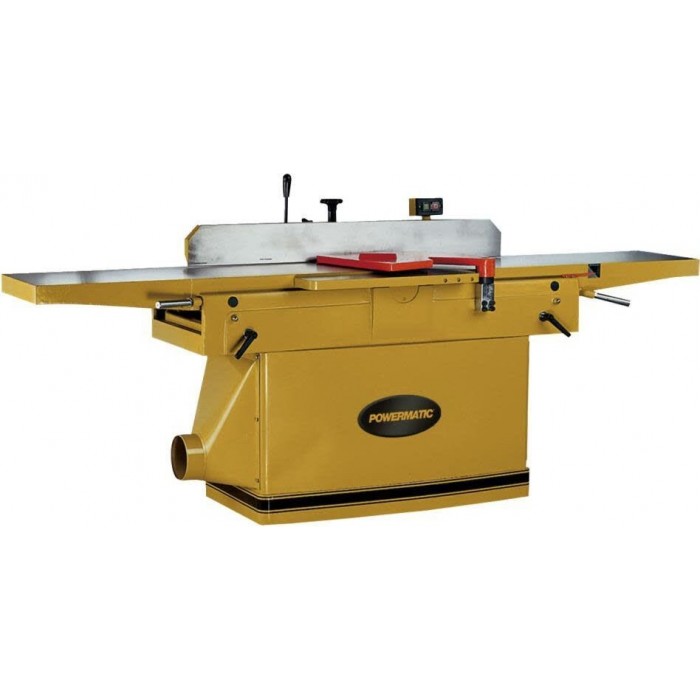

Powermatic 16in Jointer 7.5HP 3PH 230/460V Helical Head

This 16" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutter head for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutter head consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.


Specifications

Brand Name
Powermatic
Amperage (A)
2
Assembled Weight (lbs)
1280.0
Bench or Stationary
Bench
Blade Count
58
Blade Material
Steel
California Proposition 65 Warning Required
Yes
Color
Yellow
Country of Origin
Taiwan
CSA Certified
Pending
Dust Port
Yes
Horsepower (hp)
7.5
MFG Part # (OEM)
1791283
Maximum Cutting Depth (in)
0.75
Maximum Speed (rpm)
5200
Package Contents
16" Jointer 7.5HP 3PH 230/460V Helical Head
Package Depth
103.5
Package Height
41.0
Package Weight
1400.0
Package Weight (lbs)
1400
Product Condition
New
Speeds
5200
Table Length (in)
96
Table Width (in)
16
Voltage
230 Volts
Warranty Type
5 Years
