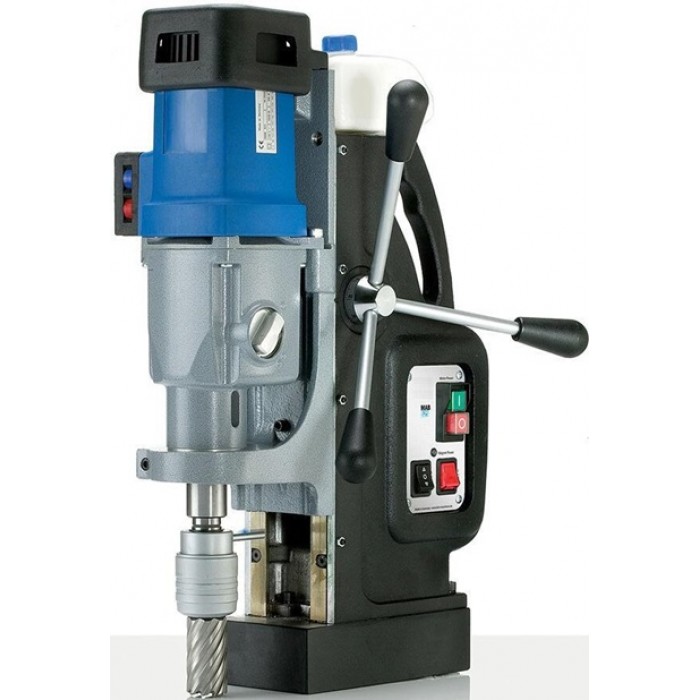

CS Unitec 4-1/6 Inch Variable Speed Magnetic Drill with Adjustable Base

CS Unitec’s MAB 845 magnetic drill features a swivel base that provides 30˚ movement left and right and 3/4” forward and backward for drilling in hard-to-reach areas. With infinitely variable torque control and full-wave electronics, this heavy-duty drill cuts holes up to 4-1/16” dia. in structural steel and other metals. Additional capabilities include twist drilling and reaming up to 1-1/4” dia., tapping up to 1-1/8” dia. and countersinking up to 2”. A stroke length of 10” makes the MAB 845 ideal for steel engineering, plant construction and more. The 16 Amp, double-insulated, reversible motor has variavle speed through a 4-gear oil bath gearbox (40-110, 65-175, 140-360, 220-600 RPM) for applications requiring high power. This unit has a quick-change keyless cutter system for 3/4” Weldon Shanks, saving time and money. An tool holder for 1-1/4” Weldon Shank is also included. Integrated sensors in the MAB 845 include magnet overheating protection, visual magnet adhesion indication and an Electronic Safety Shutoff Sensor to automatically shut down the drill motor if the magnet loses contact with the material. An internal cable routing system helps protect the motor power cord from external damage. The magnet has a holding force of 6,600 lbs.

Specifications
