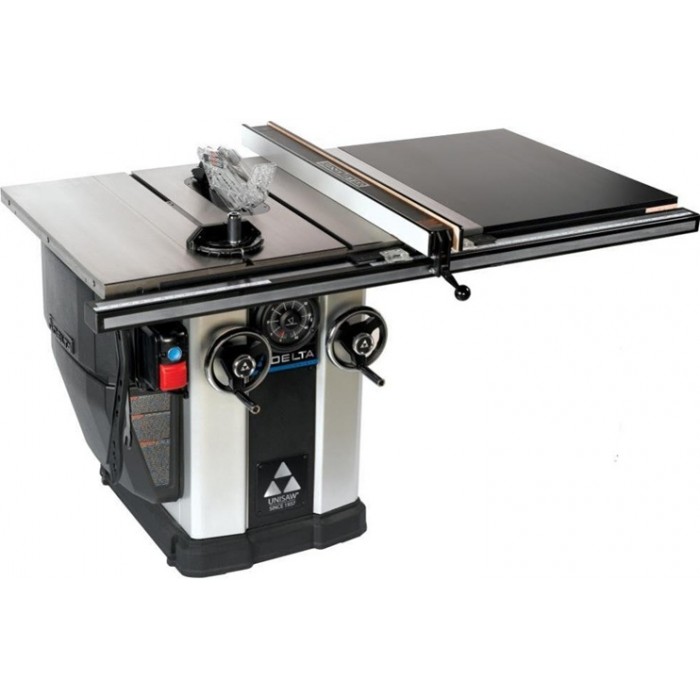

The Delta 36-L336 - 3 HP UNISAW® with 36 In. BIESEMEYER® fence system has bi-level dust extraction for improved dust collection. The single-cast trunnion system provides increased accuracy. The SURE-LOCK dual front cranks provide convenient access. It has a precision bevel gauge for ease of visibility. It also has a tool-free split guard for improved blade line of sight.
Brand Name
Delta
Amperage (A)
12
Assembled Weight (lbs)
624
Bench or Stationary
Stationary
Blade Material
Carbide
California Proposition 65 Warning Required
Yes
Color
Gray
Country of Origin
Taiwan
Diameter
10 in
Drive Motor System
Electric
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Horsepower (hp)
3
Length
8 ft
MFG Part # (OEM)
36-L336
Material
Cast Iron
Maximum Dado Diameter (In)
8
Maximum Dado Width (in)
1.125
Net Tool Weight (lbs)
624
Package Contents
Fence and tube; Fence body; Fence legs; Table board; Accessory hook; Miter Gauge; Blade wrench; Push stick; Dado blade nut: Insert; Carbide blade and nut; Blade guard; Anti-kickback pawls; Riving knife,Fence,Miter Gauge
Package Depth
0
Package Height
0
Package Weight
624
Package Weight (lbs)
624
Product Condition
New
Size
0.625 in
Spindle Lock
Yes
Table Height (in)
35
Table Length (in)
66
Table Width (in)
40
UL Listed
Yes
Voltage
220 Volts
