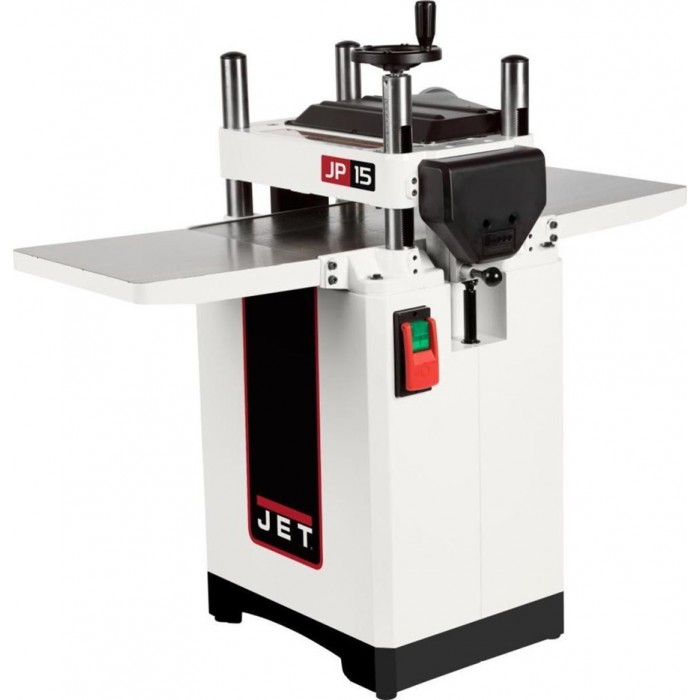

JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph

The new Jet 15 In. helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutter head housing 48 staggered carbide quick change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutter head, reducing the chance of board snipe. The conveniently located two-speed gear box allows for quick and easy feed rate adjustments while removing up to 1/8 In. material with each pass for a smooth finish. A large precision cast-iron table and Infeed/outfeed tables make this planer a beautiful addition to the shop.


Specifications

Brand Name
JET
Amperage (A)
11
Assembled Weight (lbs)
129.8
Bench or Stationary
Stationary
Blade Count
48
Blade Type
4 sided knife inserts
California Proposition 65 Warning Required
Yes
Color
White
Country of Origin
Taiwan
CSA Certified
Yes
ETL Listed
No
Height (in)
48
Horsepower (hp)
3
Length
7 ft
MFG Part # (OEM)
722155
Maximum Cutting Depth (in)
0.188
Maximum RPM
5200
Maximum Width Cutting Capacity (in)
15
Overall Weight (lbs)
129.8
Package Contents
1 Planer, 1 Handwheel assembly, 1 Dust port, 1 Torx point screwdriver T30 (with magnets), 1 Operating Instructions and Parts Manual, 1 Product registration card, 2 Cast iron extension tables, 2 Star point screwdrivers, 5 Knife inserts 10 Knife insert screws, 1 Hardware package
Package Depth
29.92
Package Height
44.88
Package Weight
330.5
Package Weight (lbs)
330.5
Product Condition
New
Switch Type
Magnetic with LED illumination, 14 A overload protector
UL Listed
Yes
Variable Speed
No
Voltage
230 Volts
Warranty Type
5 Years
