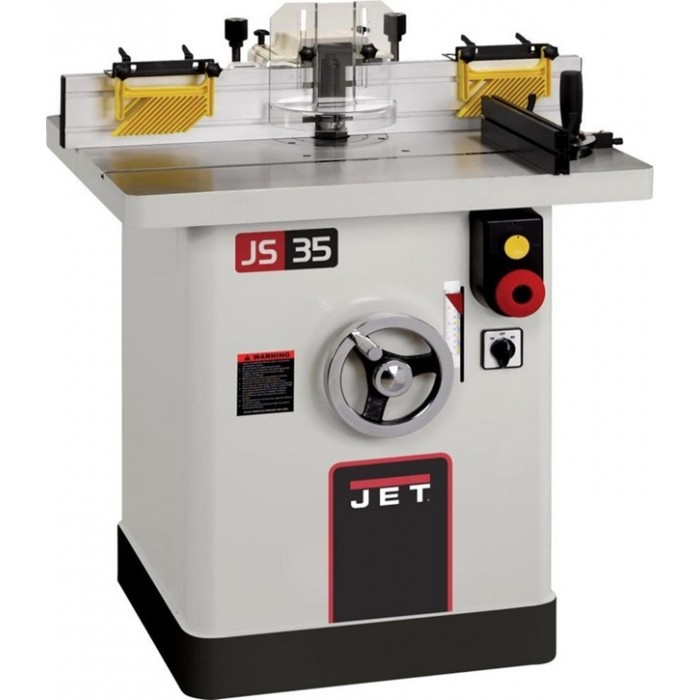

JET JWS-35X5-1 Industrial Shaper 5 HP 1Ph
This heavy-duty JET® shaper is available with a powerful 5 HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.
Brand Name
JET
Amperage (A)
17
Assembled Weight (lbs)
473
California Proposition 65 Warning Required
Yes
Color
Gray
Country of Origin
Taiwan
CSA Certified
No
Dust Collection
Yes
Dust Port
Yes
Dust Port Outside Diameter (in)
4
ETL Listed
No
Horsepower (hp)
5
MFG Part # (OEM)
708326
Material
Cast Iron
Package Contents
JWS-35X5-1 Industrial Shaper 5 HP 1Ph
Package Depth
30
Package Height
41
Package Weight
550
Package Weight (lbs)
550
Phase
Single Phase
Product Condition
New
Stand Included
Yes
Switch Type
Push Button
Table Height (in)
33.25
Table Length (in)
26.75
Table Width (in)
32.25
Variable Speed
No
Voltage
220 Volts
Warranty Type
2 Years Limited
Wheeled
No
